Rear Fresh Air Blower Control Module -J391-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

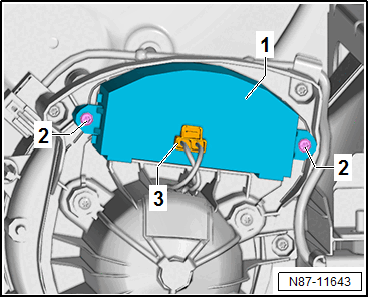

-- Disconnect the connector -3- from the Rear Fresh Air Blower Control Module -J391- -1-.
-- Remove the bolts -2-.
-- Pull the Rear Fresh Air Blower Control Module -J391- out of the housing.
