Rear Fresh Air Blower -V80-, REMOVING AND INSTALLING
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
Removing
-- Remove the right front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
-- Remove the bracket from the switch unit and the securing bracket. Refer to CENTER CONSOLE BRACKET, REMOVING AND INSTALLING .

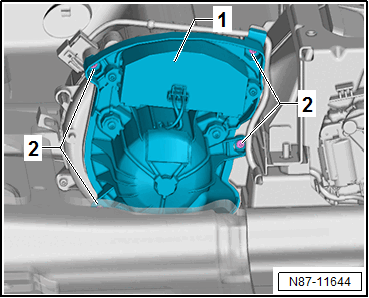

-- Disconnect the connectors from the Rear Fresh Air Blower -V80- -1-.
-- Remove the bolts -2-.
-- Remove the Rear Fresh Air Blower -V80- -1-.
Tightening Specifications
- Install the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
