Condensation Water Drain, Checking
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the underbody trim panel and heat shield.

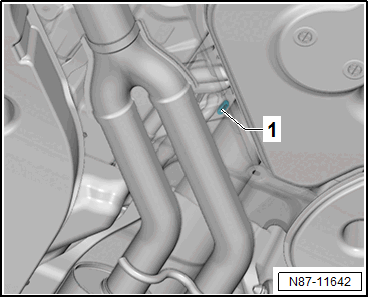

-- Check the condensation water drain -1-.
NOTE:
It must be possible to connect the condensation water drain hose -1- to the connection on the heater and A/C unit without having any tension on it.
The condensation water drain hose must fit securely to the condensation water drain connection on the tunnel.
The sealing lip must not sit loosely on the opening in the body -2-.
