Partition, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

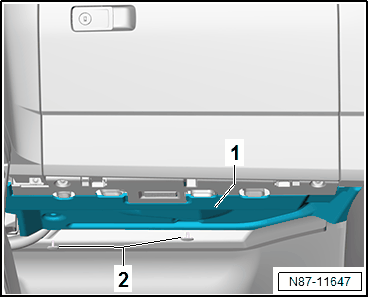

-- Depending on the version remove the plastic screws or plugs -2-.

GWWN87-11647Courtesy of AUDI OF AMERICA, LLC

-- Remove the partition -1-.
