Fresh Air Blower Control Module -J126-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

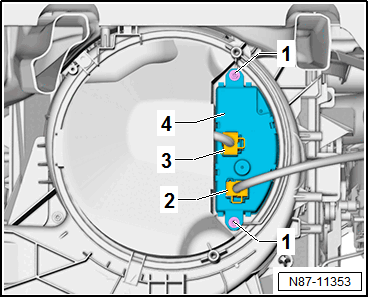

-- Remove the partition. Refer to STORAGE COMPARTMENTS AND COVERS .
-- Disconnect the connectors -3- and -2-.
-- Remove the bolts -1-.
CAUTION:
There is a risk of burns from the hot radiating surfaces on the control module.
It is possible to burn hands.
- Wear safety gloves.
-- Remove the Fresh Air Blower Control Module -J126- -4- from the Fresh Air Blower -V2-.
