Fresh Air Blower -V2-, REMOVING AND INSTALLING, RHD: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the partition. Refer to STORAGE COMPARTMENTS AND COVERS .
-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .
-- Remove the footwell vent on the front passenger side. Refer to FRONT PASSENGER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .

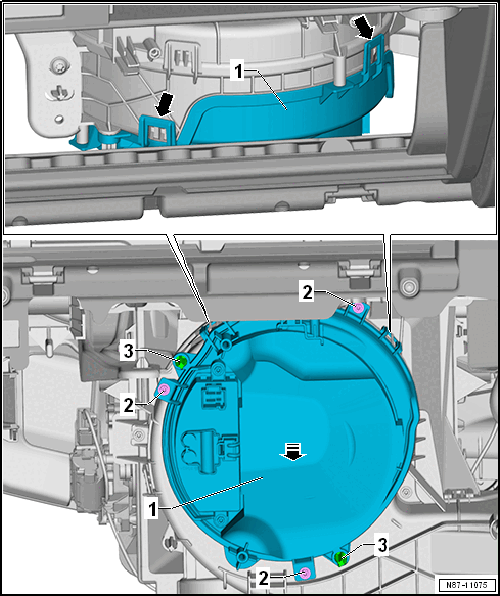

-- Disconnect the connectors.
-- Remove the bolts -2-.
-- Unclip the securing tabs -arrows-.
-- Remove the Fresh Air Blower -V2- -1- downward in the -direction of the arrow-.
CAUTION:
There is a risk of burns from the hot radiating surfaces on the control module.
It is possible to burn hands.
- Wear safety gloves.
