Evaporator Temperature Sensor -G308-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the partition. Refer to STORAGE COMPARTMENTS AND COVERS .

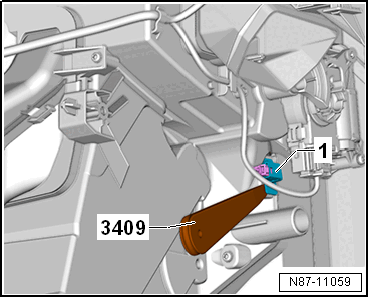

-- Release the Evaporator Temperature Sensor -G308- -1- using a Trim Removal Wedge:3409  .

GWWN87-11059Courtesy of AUDI OF AMERICA, LLC

-- Remove the Evaporator Temperature Sensor -G308- -1- from the housing.

-- Disconnect the connector.
