Condensation Water Drain, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the right footwell center console trim panel. Refer to OVERVIEW - CENTER CONSOLE .
CAUTION:
Risk of damaging the airbag control module. If moisture enters the connectors, they will corrode.
- After disconnecting, cover or seal the control module connectors to prevent moisture from entering.

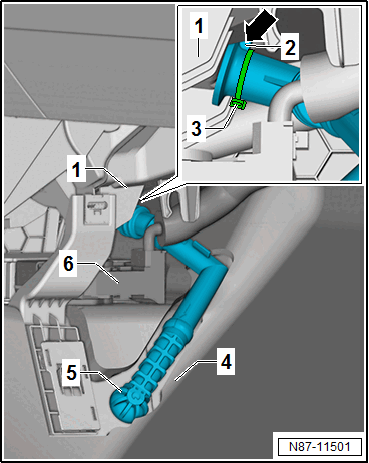

-- Remove the connector from the Airbag Control Module -J234- -6-.
-- Cover the Airbag Control Module -J234- and connector -6- with waterproof foil.
-- Carefully push the carpet to the side and cover it in the area under the condensation water drain hose with waterproof foil and absorbent paper.
-- Remove the condensation water drain hose carefully from the heater and A/C unit -1- and from the body -5-.
