Component Location Overview - Components Inside Rear Passenger Compartment
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

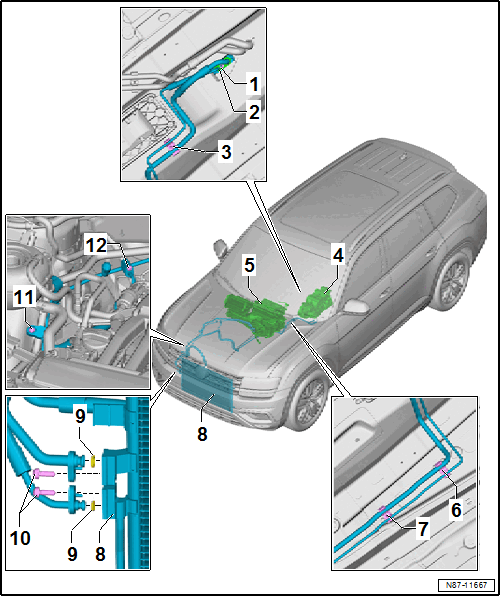

- Nut/Bolt
- 8 Nm
- Bracket
- Refrigerant Line Retainer
- Rear Heater and A/C Unit
- Removing and Installing. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
- Heater and A/C Unit
- Removing and Installing. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
- Refrigerant Line Retainer
- Refrigerant Line Retainer
- Condenser with Desiccant Bag
- Overview. Refer to OVERVIEW - CONDENSER .
- Condenser, removing and installing. Refer to CONDENSER, REMOVING AND INSTALLING .
- Desiccant Bag, Removing and Installing. Refer to DESICCANT BAG/DRYER CARTRIDGE, REMOVING AND INSTALLING .
- Seal
- Replace after each removal
- Bolts
- For the condenser refrigerant line
- 8 Nm
- Bolt
- 22 Nm
- Bolt
- 18 Nm
