Front Passenger Side FOOTWELL Vent, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

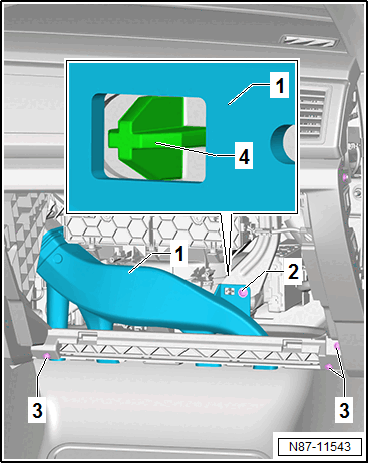

-- Remove the bolts -3-.
-- Remove the bolt -2- (if installed).
-- Pry out the front passenger side footwell vent -1- from the retainer -4-.
-- Pull the instrument panel slightly forward.
-- Remove the front passenger side footwell vent -1-.
