Center Vent Air Duct, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

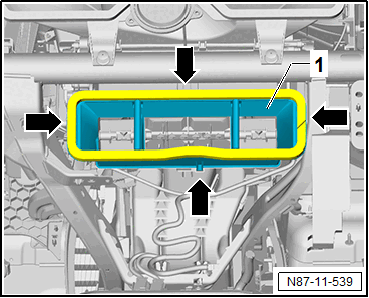

-- Pry out the tabs -arrows-.

GWWN87-11539Courtesy of AUDI OF AMERICA, LLC

-- Remove the center vent air duct -1- from the heater and A/C unit.
