Air Duct For Rear Vent, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

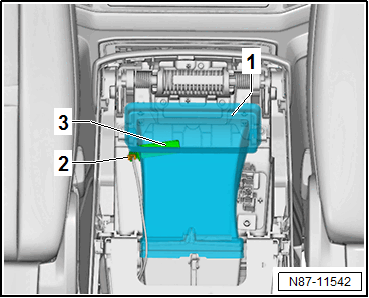

-- Remove the center console rear trim. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .
-- Disconnect the connector -2-.
-- Remove the Rear Vent Temperature Sensor -G174- -3- from the mount.
-- Remove the air duct from the rear vent -1-.
