Air Duct For Defrost Air Vent, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

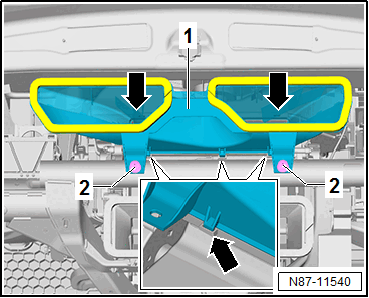

-- Remove the clips -2-.
-- Pry out the tabs -arrows-.
-- Remove the air duct for the defrost air vent -1- upward from the heater and A/C unit.
