Right Vent Temperature Sensor -G151-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Only for vehicles with Climatronic. For vehicles with an electric-manual climate control system, the openings in the air ducts are sealed with plugs.
-- Remove the A-pillar gap cover. Refer to A-PILLAR GAP COVER, REMOVING AND INSTALLING .

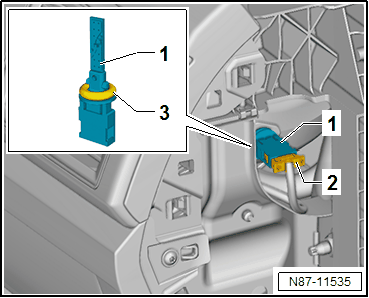

-- Turn the Right Vent Temperature Sensor -G151- -1- 90° and remove it from the mount.
-- Disconnect the connector -2-.
