Rear Temperature Control Door Motor -V137-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the center console. Refer to OVERVIEW - CENTER CONSOLE .

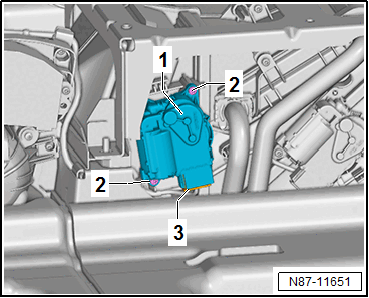

-- Disconnect the connector -3-.
-- Remove the bolts -2-.
-- Remove the Rear Temperature Control Door Motor -V137- -1-.
