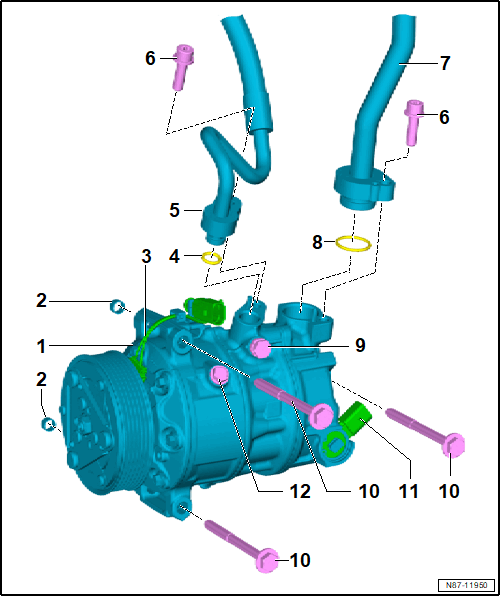

OVERVIEW - A/C COMPRESSOR POWER UNIT, WITH A/C Clutch -N25-
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- A/C Compressor
- There are different versions. Refer to the Parts Information.
- Removing and Installing. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING .
- Removing and installing from the bracket. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING ON BRACKET .
- Alignment Sleeves
- Quantity: 2
- A/C Clutch -N25-
- Seal
- Replace after removing
- There are different versions. Refer to the Parts Information.
- Coat with refrigerant oil before installing.
- Refrigerant Line
- High-pressure side
- Bolts
- Quantity: 2
- 22 Nm
- Refrigerant Line
- Low-pressure side
- Seal
- Replace after removing
- There are different versions. Refer to the Parts Information.
- Coat with refrigerant oil before installing.
- Pressure Relief Valve
- Check using the Vehicle Diagnostic Tester Refer to PRESSURE RELIEF VALVE ON A/C COMPRESSOR, CHECKING .
- Bolts
- Quantity: 3
- 25 Nm
- A/C Compressor Regulator Valve -N280-
- Replace after removing
- Checking with the Vehicle Diagnostic Tester
- Removing and Installing. Refer to A/C Compressor Regulator Valve -N280-, REMOVING AND INSTALLING .
- Oil Drain Plug
- Only remove on an empty refrigerant circuit
- Replace the oil drain plug/seal after removal
- There are different versions. Refer to the Parts Information.
- 15 Nm
