A/C Compressor, Removing And Installing On Bracket: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- If equipped, remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

Vehicles with A/C Clutch -N25-

Courtesy of AUDI OF AMERICA, LLC

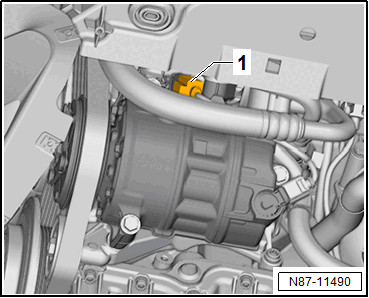

-- Disconnect the connector -1-.

Continuation for all vehicles

NOTE:

The ribbed belt is not completely removed, but rather just removed from the A/C compressor belt pulley.

-- Release the tension on the ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING - 4 CYL or RIBBED BELT, REMOVING AND INSTALLING - 6 CYL .

-- Remove the ribbed belt from the A/C compressor belt pulley.

-- Disconnect the connector -6- from the A/C compressor -1-.

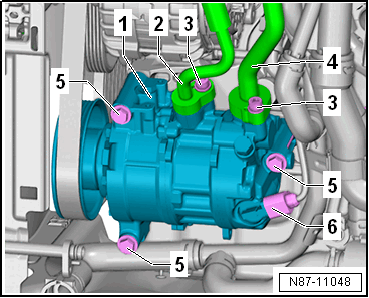

Fig 1: Connector And A/C compressor

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -5- and remove the A/C compressor -1-.

NOTE:

Do not loosen the refrigerant pipes on the A/C compressor if only the sub-assembly bracket is being removed.

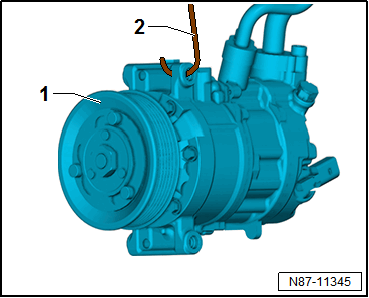

-- Attach the A/C compressor -1- to the body with something suitable, for example, welding wire -2-.

Courtesy of AUDI OF AMERICA, LLC
