A/C Compressor, Removing And Installing On Bracket: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Note the following:

-- Thoroughly clean the surfaces on the A/C compressor and bracket.

-- Insert the alignment sleeve -1- in the A/C compressor.

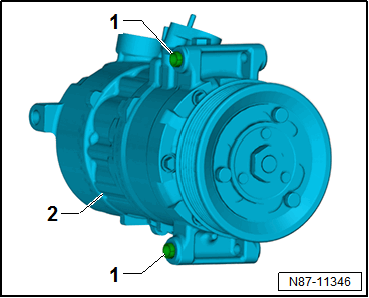

Fig 1: Identifying A/C Compressor

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Make sure the alignment sleeves are seated correctly and the contact surfaces are clean. Incorrectly installed alignment sleeves and dirty or damaged contact surfaces can cause alignment irregularities between the A/C compressor and engine. Alignment irregularities over operating time cause damage to the A/C compressor.

CAUTION:

There is a risk of damaging the A/C compressor. Refrigerant oil may accumulate in the compression chamber when the A/C compressor is removed.

- After installing a new A/C compressor or filling with fresh refrigerant oil, turn the A/C compressor 10 times by hand before installing the ribbed belt.
