Refrigerant Circuit Seals
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Replace the seals after removing.
- Coat the seals with refrigerant oil before installing.
- Make sure the seals are positioned correctly on the pipe or in the groove.
- Ensure cleanliness when working. Even the smallest contaminant, a hair for example, can cause a leak.
- Only install seals that are resistant to refrigerant R134a / R1234yf and the corresponding refrigerant oil. Refer to the appropriate Electronic Parts Information.

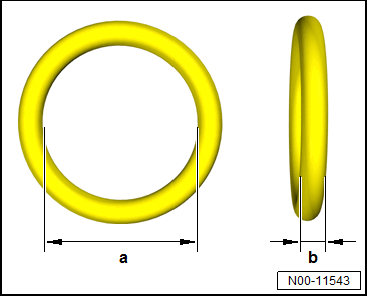

The dimensions -a- and -b- are dependent on the component location of the seal. Refer to the appropriate Electronic Parts Information.
