Spark Plugs, Replacing, 2.0L TSI Engines: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

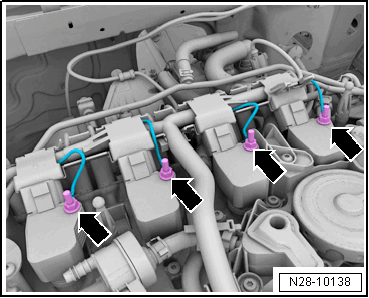

Fig 1: Identifying Ground Wire

Courtesy of AUDI OF AMERICA, LLC

-- If equipped, remove the ground wire -arrows-.

-- Disengage the connectors -1- through -4- and at the same time remove all of the plugs from the ignition coils with the power output stage.

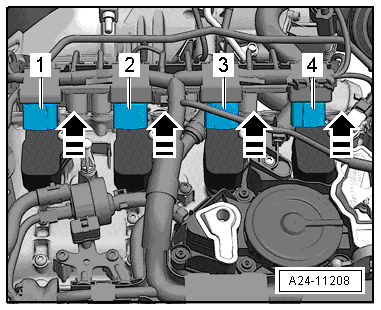

Fig 2: Disconnecting Ignition Coils Connectors

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts for the ignition coil with power output stage.

-- Push the Puller:T10530 all the way into the ignition coil hole -1-.

Fig 3: Identifying Puller T10530

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the knurled nut -2- in the -direction of the arrow-.

-- Pull the ignition coil on the Puller:T10530 in the -direction of the arrow- out of the cylinder head cover.

Fig 4: Identifying Puller T10530

Courtesy of AUDI OF AMERICA, LLC

Repeat the procedure for all ignition coils with power output stage.

NOTE:

Note the installed position of ignition coils with power output stages.

Make sure to not kink or damage the lines.

-- Remove the spark plugs using the Spark Plug Removal Tool:3122 B .
