Led Headlamp, Adjusting, Version 2
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Adjusting the headlamps is invoiced separately.

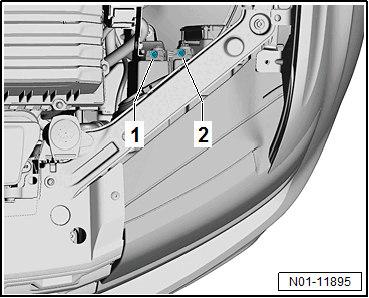

Left Headlamp, Adjusting
- Height adjustment
- Lateral adjustment
-- Turn the lateral adjustment adjusting screw -2- until the correct setting is achieved. The side adjustment is sealed for SAE headlamps.
-- Turn the height adjustment adjusting screw -1- until the correct setting is achieved.
NOTE:
The right headlamp is adjusted in the same order.
The adjusting screws for the right headlamp are a mirror image.
