Fog Lamps And Other Auxiliary Headlamps, Adjusting
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Adjusting the headlamps is invoiced separately.

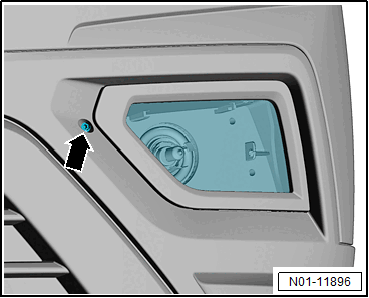

Right fog lamp in bumper
The adjusting screw on left fog lamp is a mirror image.
-- To adjust the light range, turn the adjusting screw -arrow-.
Lateral adjustment is not possible.
Other Auxiliary Headlamps
Retrofitted auxiliary headlamps of other systems must be checked and adjusted according to the guidelines applicable to them.
