Coupling Rod And Stabilizer Bar Bearing, Visual Inspection For Damage
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
Front Axle
Courtesy of AUDI OF AMERICA, LLC

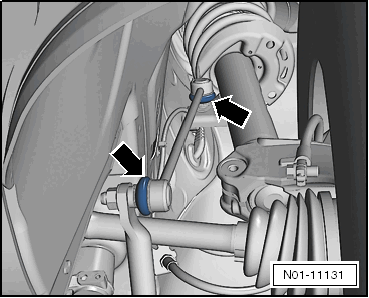

-- Check the ball joint boots on the coupling rod -arrows- for damage.
 Courtesy of AUDI OF AMERICA, LLC
|

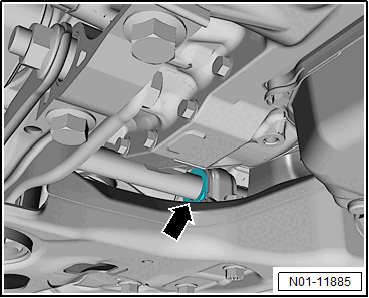

-- Check the stabilizer bar bearing -arrow- for damage.
Rear Axle
 Courtesy of AUDI OF AMERICA, LLC
|

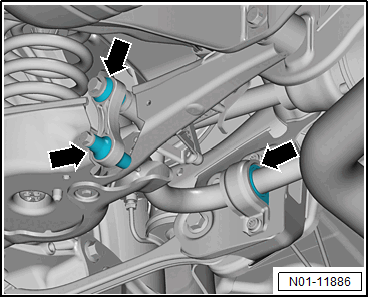

-- Check the ball joint boots on the coupling rod and stabilizer bar bearing -arrows- for damage.
