Relay And Fuse Panel Behind Instrument Panel On Driver Side, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Disconnect the ground cable from the battery when the ignition is switched off. Refer to BATTERY, DISCONNECTING AND CONNECTING .
-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

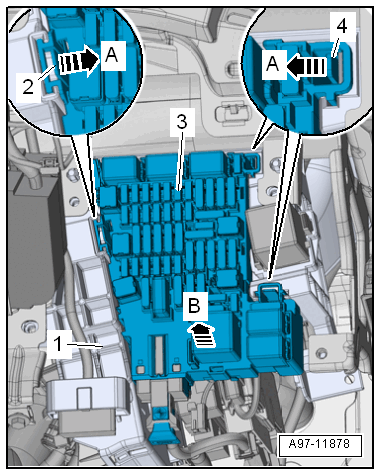

-- Release the mounting tab -2- and -4- in the -direction of the A arrows-.
-- Remove the Fuse Panel C -SC- -3- in the -direction of the arrow B- from the bracket -1-.
-- Remove the wires.
CAUTION:
The exact assignment can be found the applicable wiring diagram. Refer to the appropriate Wiring Diagram.
If necessary, take photos of the assignment.
