Main Fuse Panel, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Disconnect the ground cable from the battery when the ignition is switched off. Refer to BATTERY, DISCONNECTING AND CONNECTING .

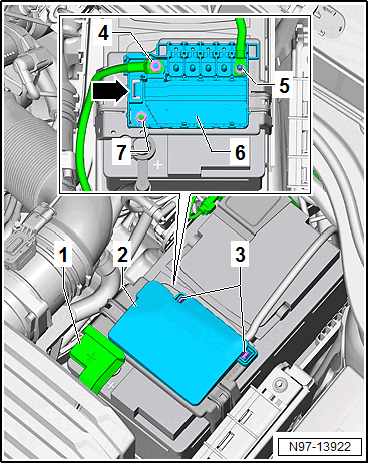

-- Unclip the cover -1- over the battery positive terminal.
-- Release the retaining tabs -3- and open the cover -2-.
-- Remove the nuts -4- and -5- and move the wires to the side.
-- Remove the nut -7-.
-- Release the retaining tab -arrow- and remove the main fuse panel -6- from the bracket.
