Relay Panel And Instrument Panel/A-Pillar Fuse Panel

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

The vehicle in the illustration is only a basic outline.

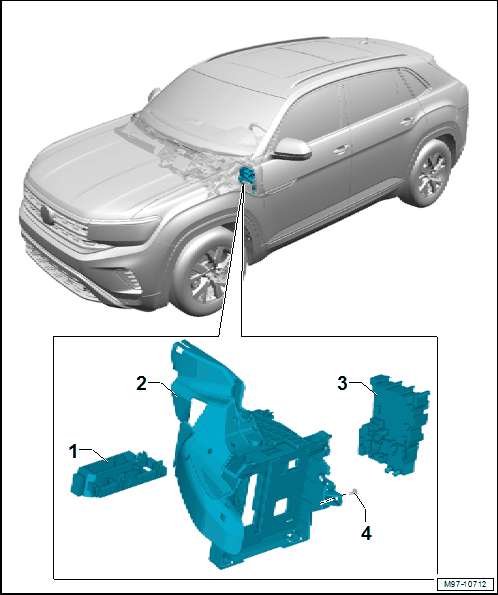

Fig 1: Exploded View Of Relay Panel And Instrument Panel/A-Pillar Fuse Panel

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bracket
- For Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791-
- Removing and installing. Refer to PARKING AID / PARALLEL PARKING ASSISTANCE CONTROL MODULE, REMOVING AND INSTALLING .
Bracket
- For the Vehicle Electrical System Control Module -J519-
- Removing and installing. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
Fuse Panel C -SC-
- Removing and installing. Refer to RELAY AND FUSE PANEL BEHIND INSTRUMENT PANEL ON DRIVER SIDE, REMOVING AND INSTALLING .
Bolt
- Quantity: 3
- 4.5 Nm
