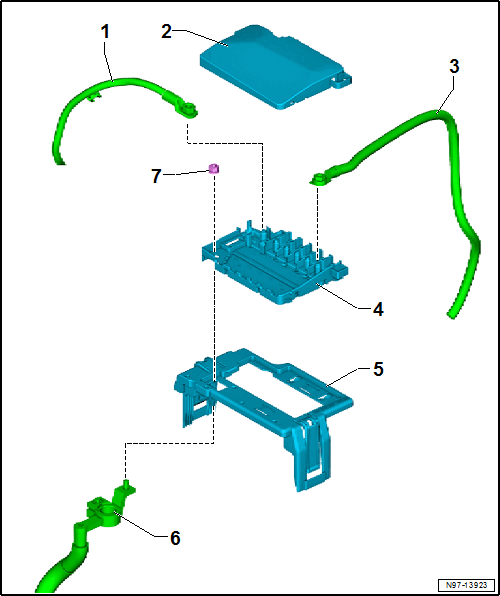

Main Fuse Panel On Battery
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Wire to Generator -C-
- With permanent nut
- 12 Nm
- Cap
- Clipped in with the main fuse panel
- Wire to Power Steering Control Module -J500-
- With permanent nut
- 6 Nm
- Main Fuse Panel
- Clipped to the bracket
- Removing and installing. Refer to MAIN FUSE PANEL, REMOVING AND INSTALLING .
- Bracket
- Clipped on the Battery -A-
- Positive Cable
- With battery terminal clamp
- Overview. Refer to OVERVIEW - BATTERY, VEHICLES WITH MAIN FUSE PANEL .
- Nut
- 6 Nm
