Rear Seat Backrest Locking Mechanism, Removing And Installing: Notes

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Torque Wrench:V.A.S 6253A

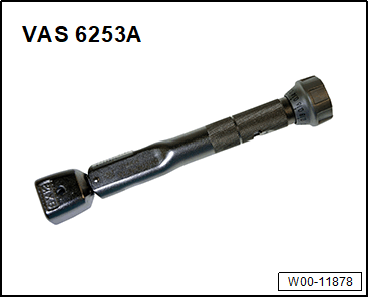

Fig 1: Torque Wrench
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Pry Lever:80-200

Fig 2: Identifying Pry Lever
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Pop Rivet Pliers:V.A.G 1753B

Fig 3: Pop Rivet Pliers
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
