Locking Mechanism Trim, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Using a screwdriver, unhook the side and upper backrest cover molding strip near the trim from the backrest.

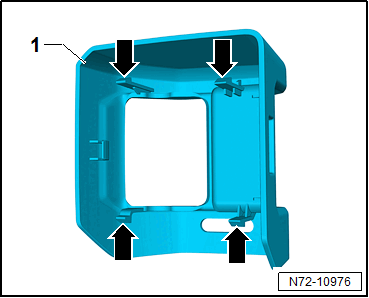

-- Release the locking tabs -arrow- using a screwdriver.
-- Pry up the unlocking element handle.
-- Unclip the trim -1- from below using the Trim Removal Wedge:3409 .
NOTE:
If locking tabs are damaged when removing, the locking mechanism trim must be replaced.
