Backrest Cover, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the headrest. Refer to HEADREST, REMOVING AND INSTALLING .

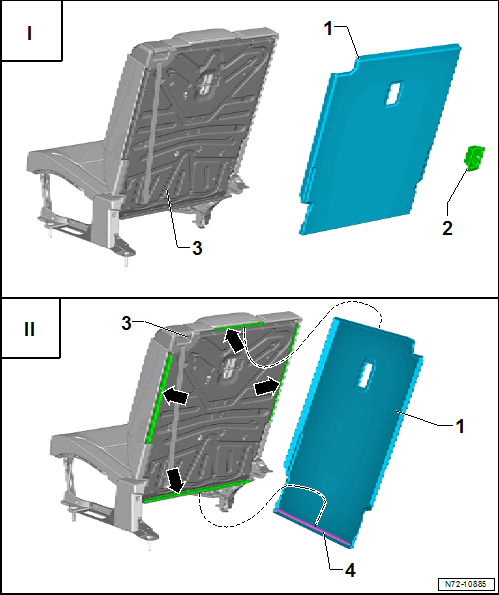

GWWN72-10885Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Using the Trim Removal Wedge:VAS 3409  , release the pull loop and top tether trim -2- at the top and bottom and remove.

-- Loosen the backrest cover -1- all around from the backrest frame -3- -arrows- and remove.
