Single Seat Armrest, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

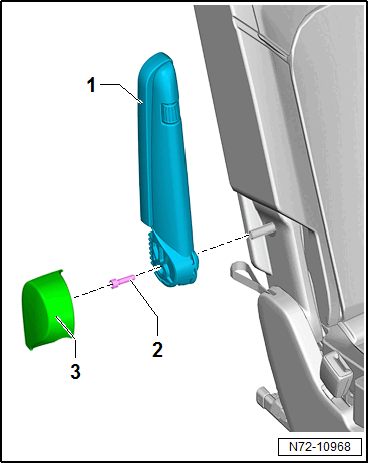

GWWN72-10968Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the cover -3- using the Trim Removal Wedge:3409  .

-- Remove the bolt -2-.

-- Remove the armrest -1- from the armrest mount.
