Locking Mechanism Trim, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

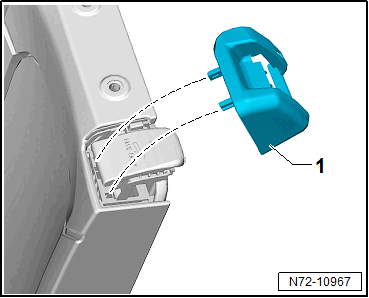

GWWN72-10967Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pry up the unlocking element handle.

-- Unclip the trim -1- starting from the lower front side toward the rear using the Trim Removal Wedge:3409  .

NOTE:

If locking tabs are damaged when removing, the locking mechanism trim must be replaced.
