Headrest Guide, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the headrest. Refer to HEADREST, REMOVING AND INSTALLING .
-- Remove the backrest cover with the backrest cushion. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING .

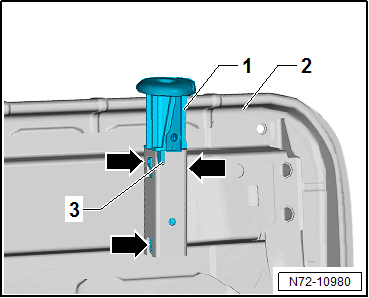

Headrest guide without button, with round guide
-- Press retaining tabs in -arrows- and simultaneously pull the headrest guide -1- upward out of the backrest frame -2-.

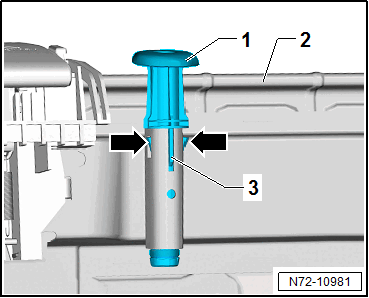

Headrest guide with button, with angular guide
