Front Trim Panel, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

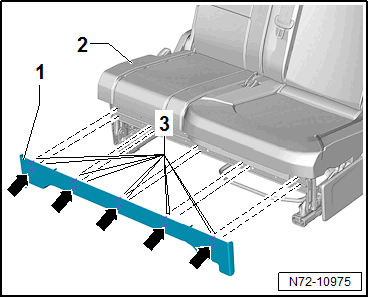

-- Unclip the front trim panel -1- from the seat -2- using the Pry Lever:80 - 200  .

GWWN72-10975Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the wiring harnesses from the trim panel and disconnect the coupling points -3- to the seat.
