Bench Seat/Single Seat, Removing And Installing, Bench Seat: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front trim panel. Refer to FRONT TRIM PANEL, REMOVING AND INSTALLING .

-- Depending on vehicle equipment, disconnect the seat heating connector.

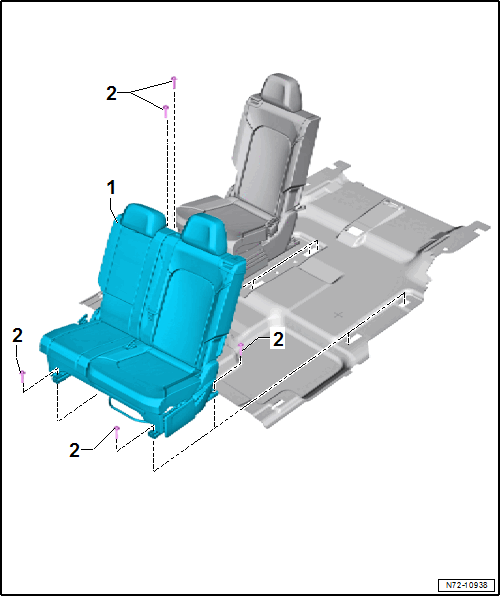

-- Remove the bolts -2-.

CAUTION:

If the seat is lifted out of the vehicle or transported, it must not be lifted by the attachments. This includes the seat belt, seat forward/back adjustment lever, seat height adjustment lever and seat trim panels. This is necessary to prevent damage.

-- Pry the seat -1- out of the vehicle.
