Tunnel-Side Seat Trim, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Trim Panel Expanding Clips

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front seat.

-- Remove the trim panel -1- expanding rivets -arrows-.

-- To do so, press the clamping pins in the expanding rivets -arrows- toward the inside.

-- Pry out the expanding rivets using the Trim Removal Wedge:3409 .

-- Remove the trim panel -1- from the mounts in the seat frame.

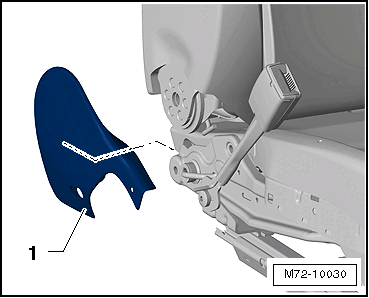

Fig 2: Identifying Trim Panel

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
