Tunnel-Side Seat Trim, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

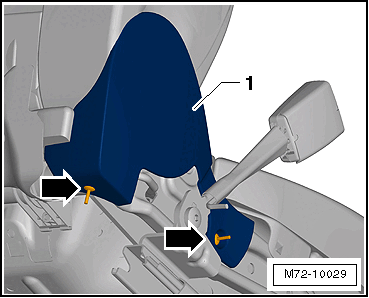

Fig 1: Identifying Trim Panel Expanding Clips
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Install in the reverse order of removal while noting the following:
-- Insert the expanding rivets -arrows- and push the pins in.
