Sill-Side Seat Trim Panel, Removing And Installing, Standard Seat: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Position the seat into its highest position.

-- Remove the backrest adjustment wheel handle.

-- Remove the seat height adjustment handle.

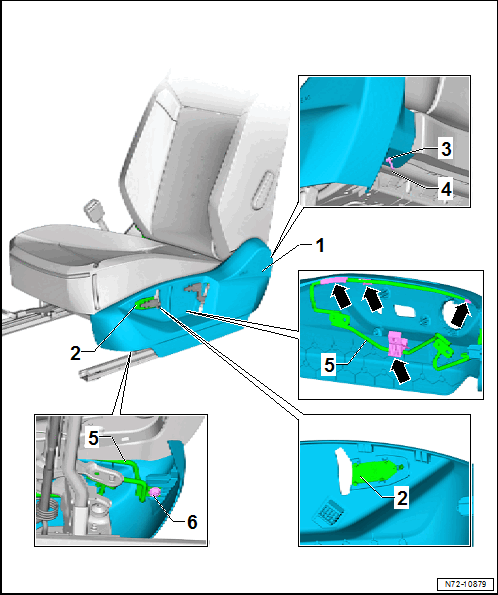

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the cap -2-.

-- Press the clamping pin -4- toward the inside.

-- Pry off the expanding rivet -3- using the Trim Removal Wedge:3409 .

-- Remove the bolt -6- from below.

-- Guide out the rear trim panel -1-.

-- Remove the trim panel -1- forward from the bracket -5- -arrows-.
