Seat Trim Panel Bracket, Removing And Installing, Standard Seat: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Position the seat into its highest position.

-- Remove the sill-side seat trim. Refer to SILL-SIDE SEAT TRIM PANEL, REMOVING AND INSTALLING, STANDARD SEAT .

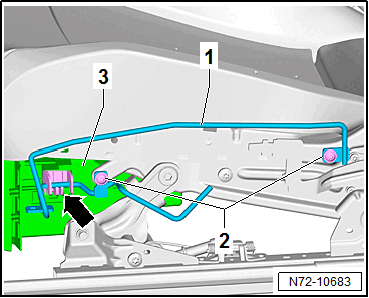

-- Remove the bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bracket for the seat trim panel -1- from the front seat -3- -arrow-.
