Seat Height Adjustment, Removing And Installing, Standard Seat: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Position the seat into its highest position.
-- Remove the sill-side seat trim. Refer to SILL-SIDE SEAT TRIM PANEL, REMOVING AND INSTALLING, STANDARD SEAT .

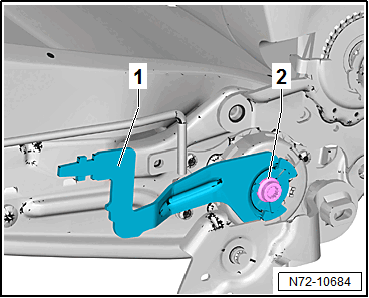

-- Remove the bolt -2-.
-- Remove the lever for the seat height adjustment -1-.
