Seat Height Adjuster, Removing And Installing, Power Seat: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Move the front seat into its highest position.

-- Remove the seat pan cover and cushion. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING .

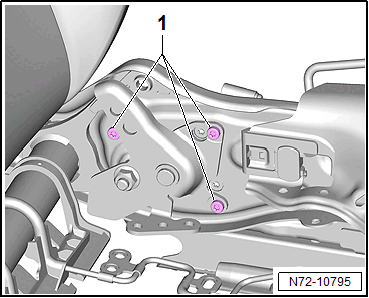

-- Remove the bolts -1-.

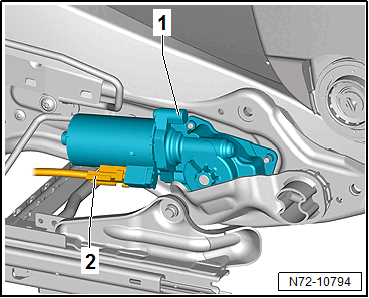

-- Disconnect the connector -2- on the seat height adjustment motor -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the seat height adjustment with the seat height adjustment motor -1-.
