Overview - Seat Pan, Standard Seat

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

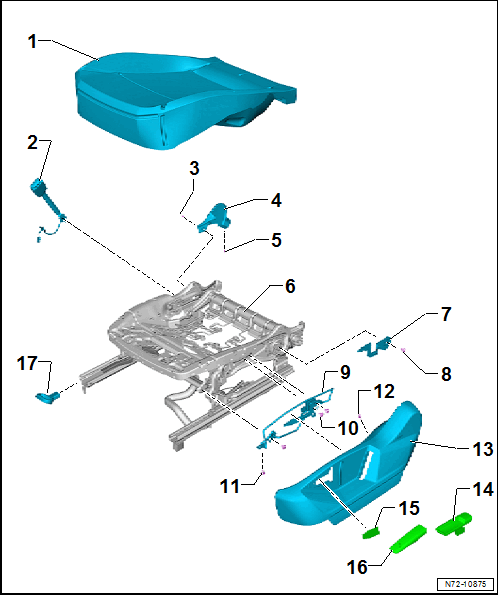

Fig 1: Exploded View Of Seat Pan, Standard Seat

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Seat Cushion
- Seat Pan Cover and Padding, Removing and Installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING .
- Seat pan cover and cushion, separating. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
Seat Belt Latch
- Removing and Installing. Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING .
Expanding Rivet
Seat Trim Panel
- Tunnel-side
- Removing and Installing. Refer to SEAT TRIM PANEL, REMOVING AND INSTALLING .
Expanding Rivet
Seat Pan
- Depending on the vehicle equipment:
  - Seat Height Adjustment
Operating Lever
- For seat height adjustment
- Removing and Installing. Refer to SEAT HEIGHT ADJUSTMENT HANDLE, REMOVING AND INSTALLING .
Bolt
- 20 Nm
Bracket
- For the sill-side seat trim panel
- With operating lever for backrest adjustment wheel
- The design depends on vehicle equipment
- Removing and Installing. Refer to SEAT TRIM PANEL BRACKET, REMOVING AND INSTALLING, STANDARD SEAT .
Bolt
- Quantity: 3
- 8 Nm
Bolt
- 2 Nm
Expanding Rivet
Seat Trim Panel
- Sill-side
- The design depends on the vehicle equipment
- Removing and Installing. Refer to SILL-SIDE SEAT TRIM PANEL, REMOVING AND INSTALLING, STANDARD SEAT .
Handle
- For seat height adjustment
- Removing and Installing. Refer to SEAT HEIGHT ADJUSTMENT HANDLE, REMOVING AND INSTALLING .
Cap
Handle
- For backrest adjustment
- Removing and Installing. Refer to BACKREST ADJUSTMENT HANDLE, REMOVING AND INSTALLING .
Seat Forward/Back Adjustment Handle
- Remove by hand or separate from the handle mount using a rubber or plastic mallet.
- Hit the seat forward/back adjustment handle all the way back on using a rubber mallet. Do not damage the surface while doing so.
