Overview - Seat Pan, Power Seat

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

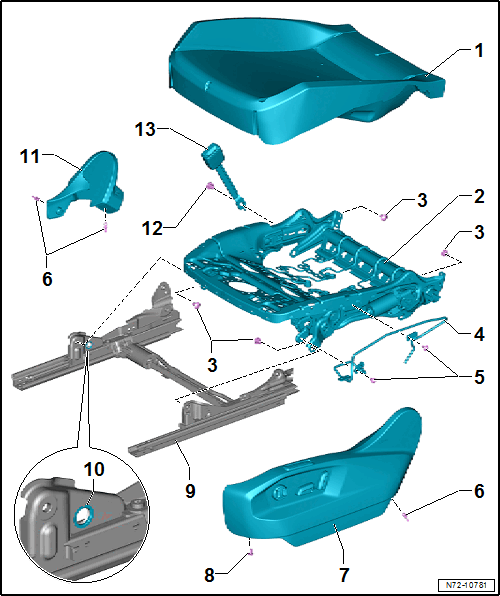

Fig 1: Exploded View Of Seat Pan, Power Seat

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Seat Cushion
- Seat Pan Cover and Padding, Removing and Installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING .
- Seat pan cover and cushion, separating. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
Seat Pan
Bolts
- For the seat pan
- Self-locking
- After removal, replace the seat frame
Bracket
- For the sill-side seat trim panel
- Removing and Installing. Refer to SEAT TRIM PANEL BRACKET, REMOVING AND INSTALLING, POWER SEAT .
Bolts
- For the bracket
- 8 Nm
Expanding Rivet
Seat Trim Panel
- Sill-side
- Removing and Installing. Refer to SILL-SIDE SEAT TRIM PANEL, REMOVING AND INSTALLING, POWER SEAT .
Bolt
- 2 Nm
Seat Pan Lower Frame
- Driver Seat Forward/Back Adjustment Motor -V28-
- Front Passenger Seat Forward/Back Adjustment Motor -V31-
- After removal, replace the seat frame
Bushing
- Inserted in all bearing locations
- Cannot be replaced with service equipment
Seat Trim Panel
- Tunnel-side
- Removing and Installing. Refer to SEAT TRIM PANEL, REMOVING AND INSTALLING .
Bolt
- For the Seat Belt Latch
- Replace every time it is loosened
- Tightening specification Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING .
Seat Belt Latch
- Removing and Installing. Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING .
