Overview - Seat Height Adjuster, Standard Seat

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

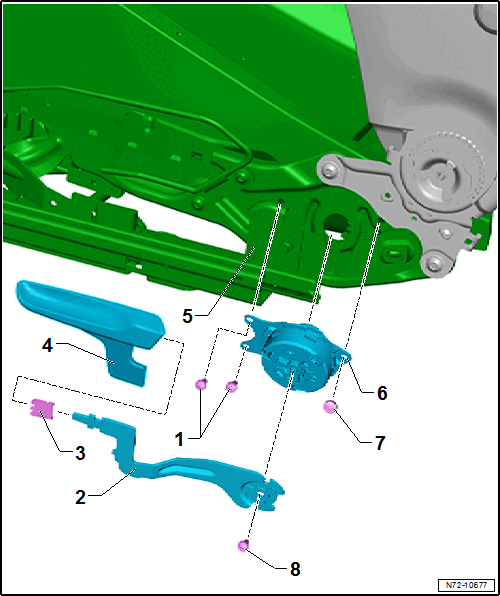

Fig 1: Exploded View Of Seat Height Adjuster, Standard Seat

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bolts
- Seat frame component
Seat Height Adjusting Lever
- For seat height adjustment
- Removing and Installing. Refer to SEAT HEIGHT ADJUSTER, REMOVING AND INSTALLING .
Clip
- Check for secure fit
Seat Height Adjustment Handle
- Removing and Installing. Refer to SEAT HEIGHT ADJUSTMENT HANDLE, REMOVING AND INSTALLING .
Seat Pan
- Overview. Refer to OVERVIEW - SEAT PAN .
Seat Height Adjustment
- Seat frame component
Bolt
- Seat frame component
Bolt
- 20 Nm
