Lumbar Support Adjusting Mechanism, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

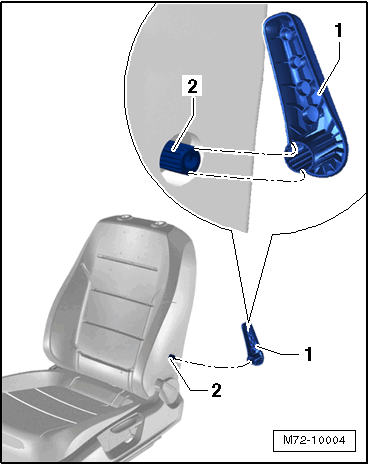

Fig 1: Identifying Lumbar Adjustment Lever Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install in the reverse order of removal while noting the following:

-- Make sure the splines on the lumbar support adjusting lever -1- align with the splines on the shaft -2-.

-- Check the lever for secure fit by pulling on it.

-- Replace the adjusting lever if it is too loose after assembling.
