Left Front Seat Cushion Fan 1 -V514- /Right Front Seat Cushion Fan 1 -V518-, REMOVING AND INSTALLING: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal while noting the following:

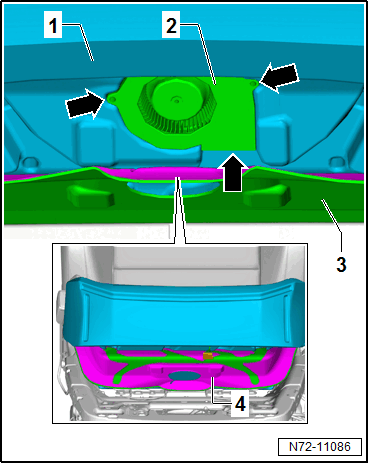

-- Insert the Left Front Seat Cushion Fan 1 -V514- -item 2- in the correct installation position -arrows- into the seat cushion -1-.
-- Coat the fleece -3- in the adhesion area -4- with adhesive.
NOTE:
Secure the fleece only with the specified adhesive. Refer to the appropriate Electronic Parts Information.
Only coat the adhesion area -4- that is pictured with adhesive.
When securing the fleece, make sure the position is exact.
-- Press the fleece -3- on the seat cushion -1- and attach.
