Front Seat, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

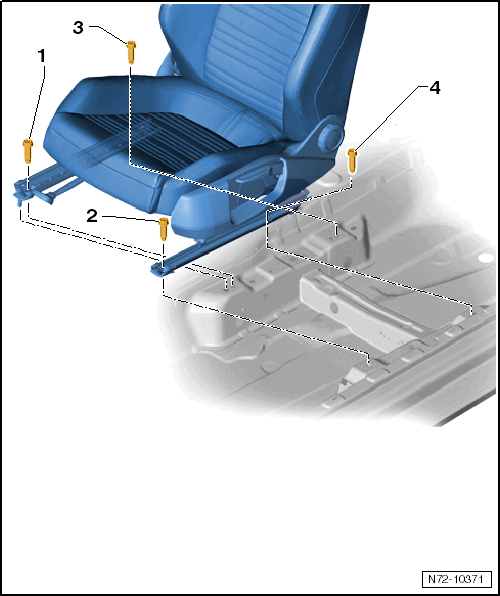

Fig 1: Identifying Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lift the seat through the front door and into the vehicle.

-- First position the front seat.

-- Guide the seat into the centering pins.

WARNING:

When installing the seat, if a thread in the seat crossmember mounting plate was damaged, a reworking of the damaged thread is forbidden. In this case, the seat crossmember mounting plate must be replaced.

If there is damage to threads in the seat crossmember mounting plate:

-- Replace the affected seat crossmember mounting plate.

-- Remove the Airbag Lockout Adapter:VAS 6282 .

-- Attach the thorax airbag wiring harness to the connector station.

-- Depending on the vehicle equipment level, engage the wiring harnesses in the coupling station.

-- Close the cover in the carpet.

-- Switch the ignition on.

WARNING:

Make sure that no persons are in the vehicle.

-- Connect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

NOTE:

If the Airbag Indicator Lamp -K75- indicates a fault after installing, check the DTC memory, erase it and check it again using the Vehicle Diagnostic Tester.
