Fire Extinguisher Bracket On Seat Frame, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the fire extinguisher.

-- Remove the seat pan cover and cushion. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING .

-- Remove the fire extinguisher bracket. Refer to FIRE EXTINGUISHER BRACKET, REMOVING AND INSTALLING .

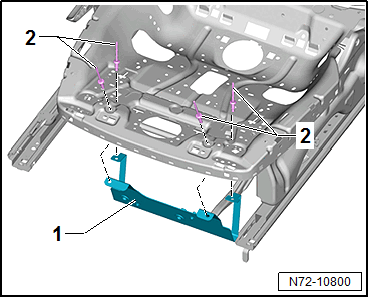

-- Drill open and remove the pop rivets -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bracket for the fire extinguisher -1- from the seat frame.
