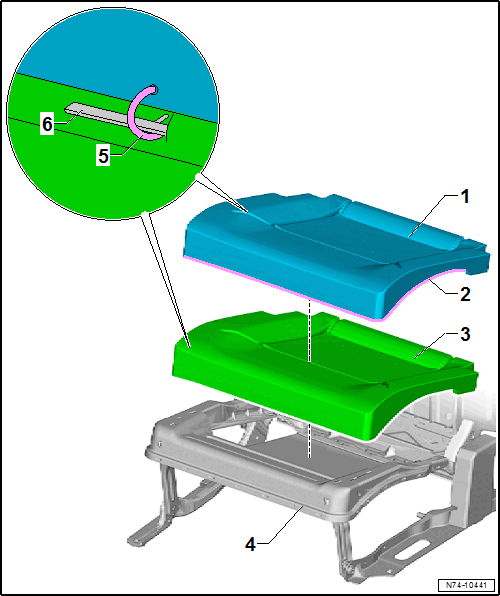

Overview - Bench Seat Cover And Cushion: Notes
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Seat Cover
- Different equipment levels
- Allocation. Refer to the appropriate Electronic Parts Information.
- Removing and Installing. Refer to SEAT COVER AND CUSHION, SEPARATING .
- Molding Strip
- Sewn into seat cover
- For engaging the seat cover in the seat frame
- Seat Cushion
- Allocation. Refer to the appropriate Electronic Parts Information.
- Removing and Installing. Refer to SEAT COVER AND CUSHION, REMOVING AND INSTALLING .
- Seat Frame
- Upholstery Clip
- Attachment of the seat cover to the seat cushion
- Replace after removing
- Upholstery Wire
- Component of the seat cushion
