Backrest Cover And Cushion, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front trim panel. Refer to FRONT TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the seat. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

-- Remove the headrest. Refer to HEADREST, REMOVING AND INSTALLING .

-- Remove the armrest. Refer to SINGLE SEAT ARMREST, REMOVING AND INSTALLING .

-- Remove the outer trim panel. Refer to OVERVIEW - BENCH SEAT/SINGLE SEATS .

-- Remove the backrest release lever trim panel using the Pry Lever:80 - 200 .

-- If equipped: remove the guide for the LATCH child seat anchor. Refer to REAR CHILD SEAT ANCHOR, REMOVING AND INSTALLING .

-- Loosen the seat heating wiring harness from the seat frame.

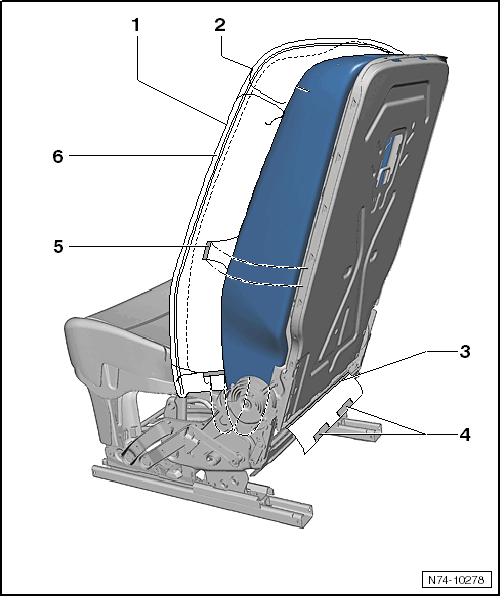

-- Loosen the molding strip -3- and -4- from the backrest frame.

-- Loosen the molding strip -6- of the backrest cover -1- all around from the backrest frame.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the backrest cover -1- with the cushion from the seat frame.
